    40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light

    Ask Lasest Price
    Brand Name : xinland
    Model Number : DOE Laser Module
    Certification : CE
    Price : Negotiated
    Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000pcs per months
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light

    40.6° Cross Belt Frame Laser Module Positioning Projection Light with Imported from Germany Grating Sheet Laser Diode

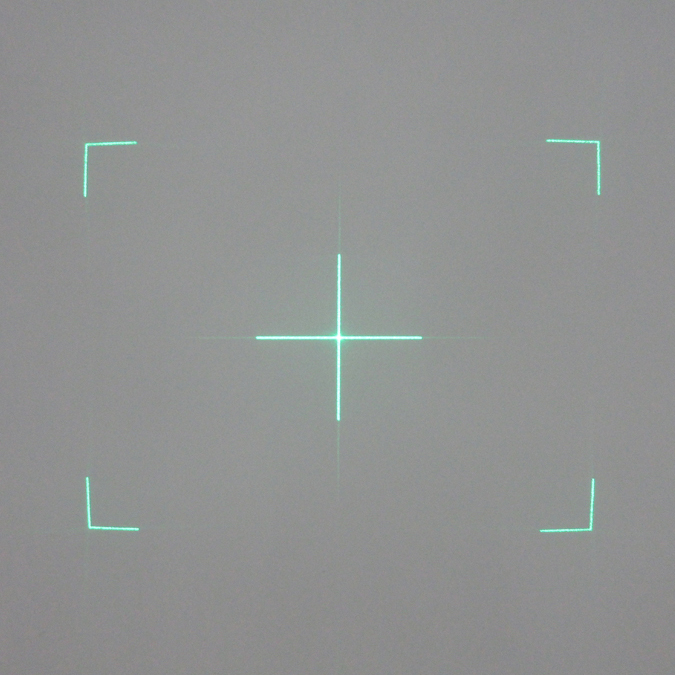

    Light Spot 0.5 meters Details:

    Lens angle: 40.6°
    0.5m: Length (40.6°): 370mm
    0.5m: Width (31.5°): 281mm
    At 0.5m: Cross length (13°): 115mm
    Wavelength, Output Power, Voltage and Size Customizable
    Installation height 0 meters - 5 meters can be used

    The intelligent driver board with imported IC can supply power in a wide range of 2.8-5.2V (other voltages can be customized)

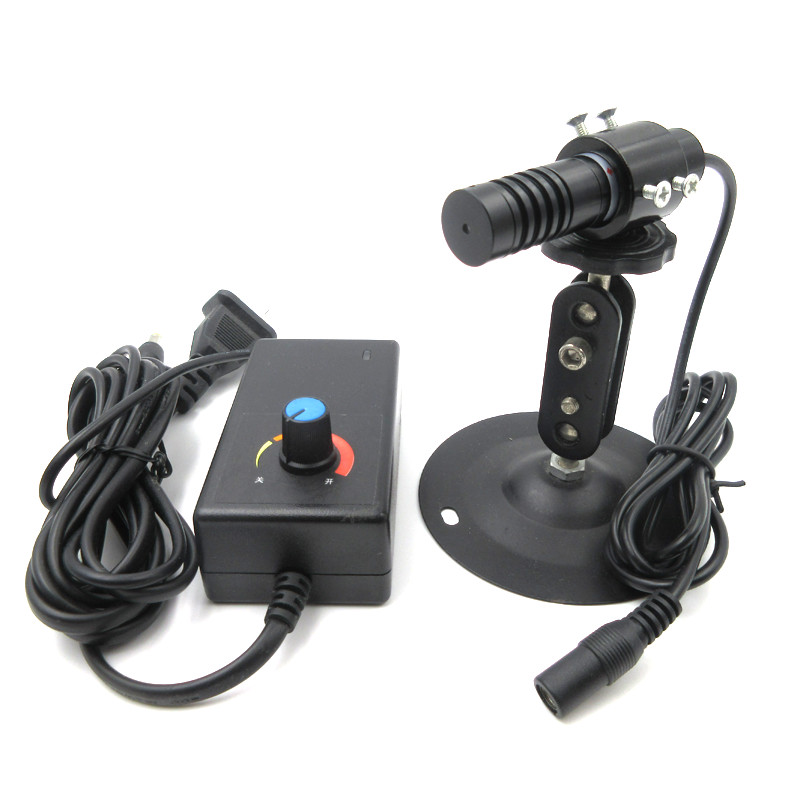

    The whole set includes: Laser head + bracket + 2.8-5.2V adjustable power supply

    40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light

    NameWavelengthOutput PowerVoltage(V)Electric CurrentSizeOther Parameters
    40.6° with Crossed Point Rectangle Red Laser650nm100mwDC 2.8-5.2V<500mAΦ16x70mmLens angle: 40.6°
    Wavelength, Output Power, Voltage and Size Customizable
    Installation height 0 meters - 5 meters can be used
    40.6° with Crossed Point Rectangle Green Laser520nm50mwDC 2.8-5.2V<500mAΦ16x70mm
    40.6° with Crossed Point Rectangle Blue Laser450nm100mwDC 2.8-5.2V<500mAΦ16x70mm

    Warranty:

    we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

    Payment Method:

    PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

    Shipping Method:

    DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
